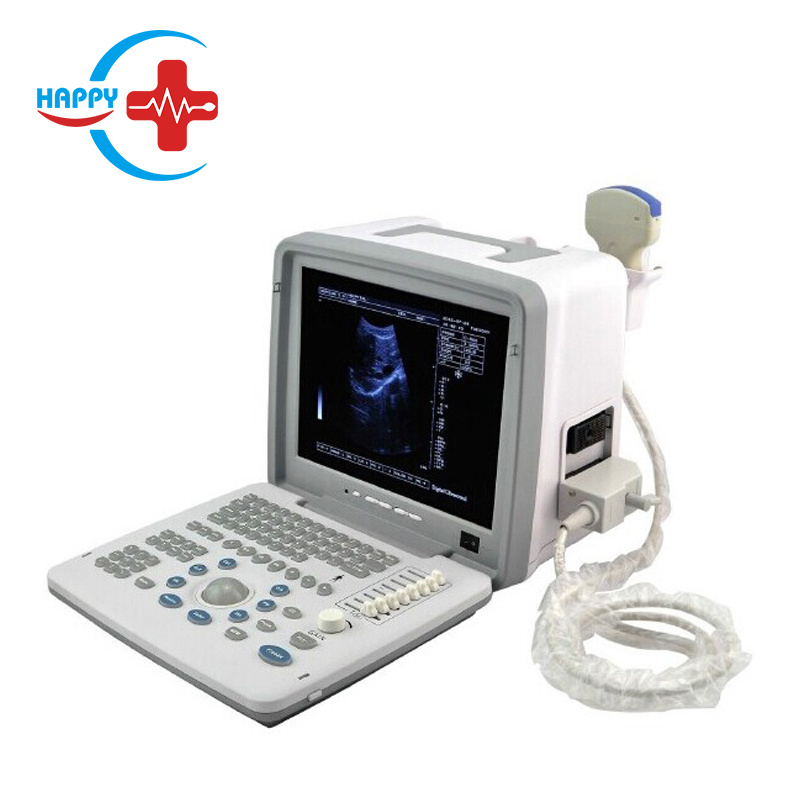

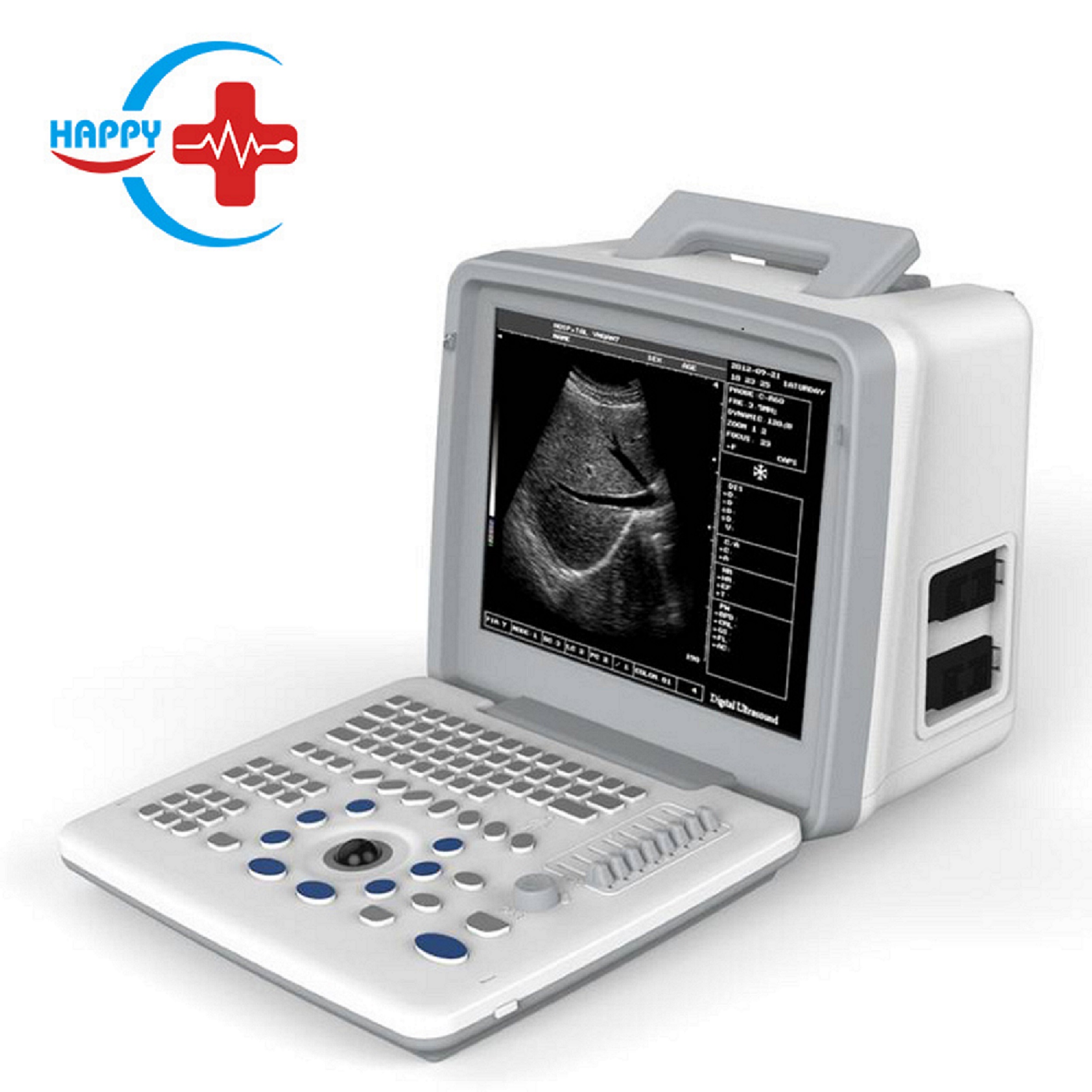

Happycare HC-A002 Ultrasound machine preprogramed multiple language options, light and portable design, and much clear image than similar black & white vet ultrasound.
|
Model |
HC-A002 |
|
Display Modes |
3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M 5 MHz/R20 Dimpling array probe:B 6.5MHz/R13 Dimpling array probe:B |
|
Image Mutiplying Factor |
3.5MHz/R60 convex array probe: x0.8, x1.0, x1.2, x1.5,x1 .8, x2.0 |
|
E-zoom |
magnify 2 times of real time image |
|
Dynamic Range |
0~120dB ajustable |
|
Focus Position |
1,2,3 and 4-segments dynamic electron focusing |
|
Image Processing: |
γcorrection, frame correlation,point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc. |
|
According to the user’s pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue. |
|
|
Frequency Conversion: |
2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion |
|
Measuring Function |
Distance,circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD,GS,CRL,FL,HL,OFD,TTD,AC ), expected date of confinement and fetus weight, etc. |
|
Annotation Function |
hospital name, patient’s name, age and gender |
|
Puncture Guide |
3.5MHz convex array probe can display puncture guide line in B mode |
|
Gain Control |
8 segments TGC and overall gain can be adjusted respectively |
|
Image Polarity |
left and right flip, black and white flip, up and down flip |
|
Capacity Cine Loop |
real time display 256 consecutive images which are memorized successively |
|
Image Playback |
series playback or check one by one |
|
Permanent Storage: |
128 images |
|

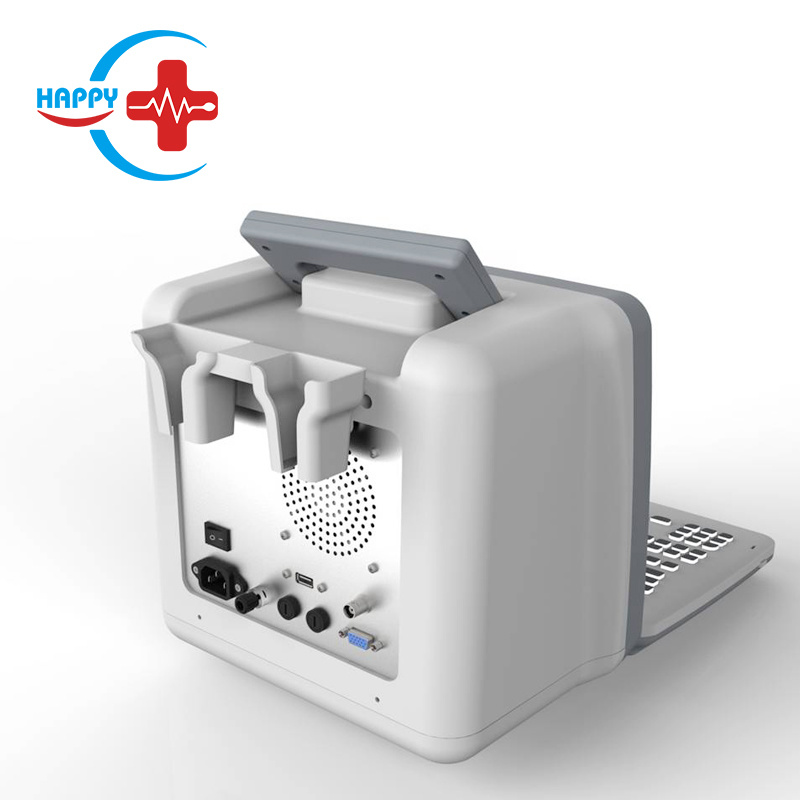

Output Interface |
VGA video output offers connection to SVGA color display |
|
USB Port |
Offers storing images in USB flash disk |
Portable ultrasound machine is a useful tools in pet hospital and clinic, widely used for pet pregnancy, body parts diagnostic, abdominal, cardiac scan and urinary system check.
1. Mass memory , cine loop and permanent storage.
2. Radium Caved buttons and Silicon backlit buttons to be chosen;
3. Intelligent fluorescence trackball.
4. 8-segment TGC control. Overall Gain control
5. 2 USB ports , Upgraded and expandable printer function;
6. 2probe connectors. Probe automatic identfication;
7. 2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc.
8. Report page is generated automatically.
9. According to the user’s pattern style preference, the parameter will be set up automatically and saved,
Boot default this parameter. This default of parameter can aslo be modified in the menue.
• Ua teb: Rau tag nrho koj cov kev nug, Peb yuav sim peb zoo tshaj plaws teb nyob rau hauv 24 Teev
• Ua raws li qhov zoo: Ob npaug zoo ua ntej shipping, Yog tias muaj teeb meem zoo peb yuav raug mob.
• Nyob ntawm lub sij hawm shipping: Koj qhov kev txiav txim yuav shipped ib zaug tas tswj
• Nyob rau lub sij hawm tom qab kev muag khoom: Tej nqe lus nug tom qab muag lus nug yuav teb tsis pub dhau 24 Teev.
• Ntau tshaj 13 xyoo kev kho mob manufacturer
• Muab khoom siv rau kev kho mob zoo heev
• Cov neeg ua hauj lwm pab muag khoom thiab cov neeg ua hauj lwm pab ua hauj lwm rau txhua lo lus nug uas koj nug, thiab txoj cai rau taw tes.
• Ntau yam khoom uas pom zoo rau koj ntau yam kev xav tau thiab txawv pob nyiaj siv.
Tag nrho cov khoom uas yuav tsum tau mus txog 4 cov tshev mis rau tag nrho cov txheej txheem tseem:
1. Component Inspection
2. Txheej txheem kev soj ntsuam
3. Zaum kawg soj ntsuam ua ntej packing
4. Zoo tswj xyuas ua ntej shipping
Q: How to place order of HC-A013C color doppler ultrasound machine?
A:
• Ua ntej peb tshawb kom paub meej thiab xa cov Proforma Invoice,
• Koj them nyiaj rau peb los ntawm T/T, Thaj npe los yog MoneyGram,
• Tom qab peb paub tseeb hais tias koj cov nyiaj them poob haujlwm ces nkoj rau koj ib zaug tas lawm.
Q: For ultrasound machine, how does the 3D function work and what it is?
A: For our HC-A013C color doppler ultrasound machine, it shows static 3D image when diagnostic obstetric scan of baby, it display 3 dimension of fetus. And make it clear to viewing.
Q: Koj warranty yog dab tsi?
A:
• Rau feem ntau cov khoom warranty yog rau 12 Cov Hli, tej yam khoom uas peb muab 18 hli warranty.
• Rau lub plab xeeb tub ultrasound tshuab peb muab 12 hli warranty.
Q: Koj tus me nyuam lub sij hawm?
A:
• Feem ntau nws yog 5 hnub ua hauj lwm yog hais tias cov khoom nyob rau hauv Tshuag. Tsis pub dhau 10 Hnub ua hauj lwm yog hais tias cov khoom xav tau ntau lawm,
• And also the delivery time depends on quantity. For HC-A013C portable ultrasound machine the delivery time is 10 hnub ua hauj lwm.
Q: Yuav nkoj qhov khoom?
A:
• Shipping txoj kev uas nquag nyob ntawm koj lub quantity, Tag nrho CBM thiab luj.
• We have our own shipping company to provide best shipping cost and efficient way.
If you have some problems about Ultrasound, or want to know more details about Vet equipment, Laboratory machine, Hopital Furniture, etc. Welcome to contact us!
